polyester mesh netting

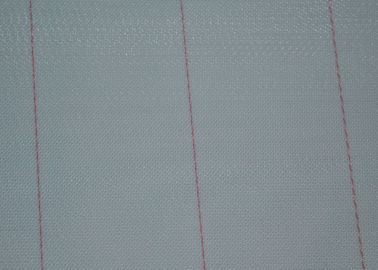

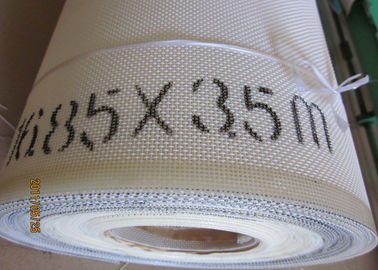

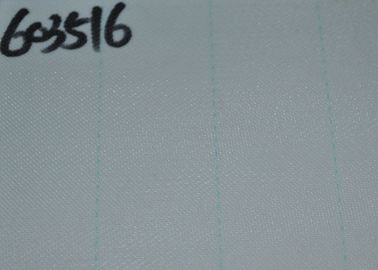

Polyester Mesh Netting Dryer Screen With Two And A Half Layer for Paper Making
Product Details:
Paper Making Polyester Dryer Screen classification:
Paper making Polyester Mesh Fabric Layer Fabric can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type. Single layer, double layer, two-and a half layer fabric and triple-layer fabric are the three common Items.
16-shed double and a half layer polyester forming mesh belt fabric is suitable for producing quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), Also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
8-shed double layer polyester mesh fabric is suitable for producing quality printing paper. For example ,dictionary paper, offset printing paper, newsprint and wrap paper. It can be used for tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
4-shed and 5-shed series single layer polyester forming fabrics mesh belt are the two widely used polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint. Suitable for common fourdrinier paper machine.
8-shed single layer polyester mesh screen belt is suitable for kraft paper, cardboard , corrugated paper making. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.
Multi-shed three-layer polyester fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.
Blue16 Mesh Polyester Dryer Screen For Sulplate Pulp Packing , OEM ODM Service
Product Details:
Features of polyester Drye Screen Belt:
Polyester Plain Weave Dryer Screen Belt has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.
Application of Polyester Monofilament Dryer Screen Belt:
Polyester Monofilament Dryer Screen Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Monofilament Dryer Screen Belt is also used for tailings disposal,colliery,food and medicine.
Discription of Polyester Monofilament Dryer Screen Belt:
1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans
Specifications of Polyester Monofilament Dryer Screen Belt
| Polyester Monofilament Dryer Screen Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
|

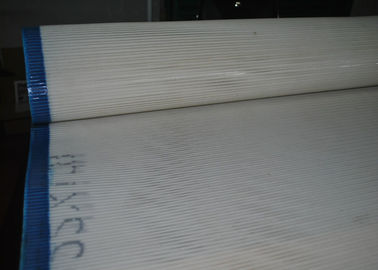

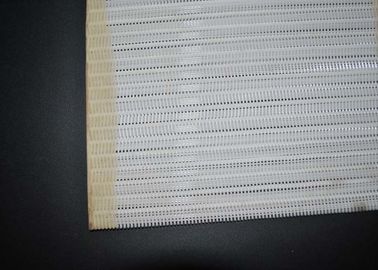

100% Polyester Mesh Netting spiral screen For Conveyor Dryer Heat Resistance
Product Details:
Description:
Polyester spiral screen polyester spiral mesh polyester spiral fabric polyester spiral dryer fabric
We produce polyester spiral dryer fabric made from first-class monofilament, in reference to Finland Standard, has the characteristics of stable property and long work time.
Application:
- polyester spiral dryer screen is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
- polyester spiral dryer screen are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
- polyester spiral dryer screen are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
Specification:
| Polyester Spiral Dryer Conveyor Wire Mesh Belt | ||||
| Weaving Type | Model | Thread Diameter | Air permeability | |
| (mm) | (m3/m2h) | |||
| Warp | Weft | |||
| Large Loop | 4070 | 0.9 | 1.1 | 20000±500 |
| Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 |
| Small Loop | 3252 | 0.52 | 0.7 | 15000±500 |
High Performance 100% Polyester Spiral Mesh 0.5-1.1mm For Paper Industry
Product Details:
Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt
Polyester spiral dryer belt is using the latest international in the ninety s made of nonwoven technology and equipment production, is currently the world's one of the most advanced drying, filtering material. I plant the production of polyester spiral stem network is made of high quality high viscosity polyester chip processing wire, after forming, weaving, finishing, finalize the design.
Good Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt
- polyester spiral dryer belt is suitable for high-pressure pressfilter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer.
- polyester spiral dryer belt are extensively used for producing cardboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter,instead of papermaking machine dry blanket,canvas,as well as apply to colliery,food and medicine as conveyor belts.
- polyester spiral dryer belt are made with special first quality yarns in 100%polyester,every spiral link dryer fabric is heat-set granting a high degree of stability and long running life.
ood Permeability 100%Polyester Dryer Screen For Conveyor Wire Mesh Belt
| Polyester Spiral Dryer Conveyor Wire Mesh Belt | ||||
| Weaving Type | Model | Thread Diameter | Air permeability | |
| (mm) | (m3/m2h) | |||
| Warp | Weft | |||
| Large Loop | 4070 | 0.9 | 1.1 | 20000±500 |
| Medium Loop | 3868 | 0.7 | 0.9 | 18500±500 |
| Small Loop | 3252 | 0.52 | 0.7 | 15000±500 |
