polyester net fabric

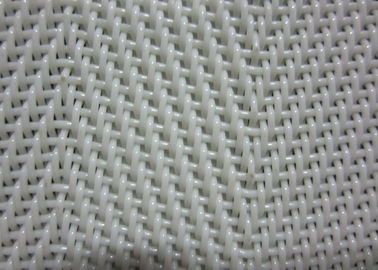

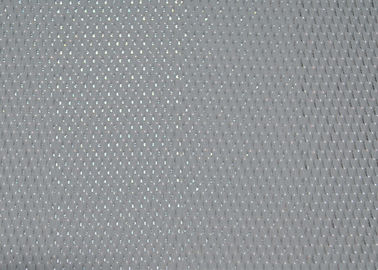

161013 Monofilament Polyester Net Fabric Mesh Belt For Sludge Dehydration

  • 161013 Monofilament Polyester Net Fabric Mesh Belt For Sludge Dehydration
  • 161013 Monofilament Polyester Net Fabric Mesh Belt For Sludge Dehydration
  • 161013 Monofilament Polyester Net Fabric Mesh Belt For Sludge Dehydration
Product Details:

Applications:


Sludge Dewatering 161013 Polyester Mesh Belt Monofilament Screen Fabric is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.



Description



Sludge Dewatering 161013 Polyester Mesh Belt Monofilament Screen Fabric enjoy features of good aire permeability ,easy to clean,abrasion resistance ,high temperature resistant ,allows air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C

Specifications of Polyester Monofilament Mesh Belt for Sludge Dehydration:

Model Wire Diameter Density Root/10cm Air Permeability m3/m2h Net Weight g/m2 Strength kg/cm Used in
Wrap Weft Wrap Weft
14803 0.7 0.8 142 47-60 3900-8500 1400 240 Sludge,Squeeze juice
16803 0.7 0.8 156 46-50 6000 1400 265 Sludge,Squeeze juice
16904 0.75 0.9 156 47 8000 1800 280 Iron and steel industry sludge dewatering Living slude dewatering
121054 0.9 1.05 120 42 8000 1650 340 Iron and steel industry sludge dewatering
22903 0.5 0.9 220 50-55 9000 1200 200 Living slude dewatering
20703 0.5 0.7 200 70 10000 1000 185 Living slude dewatering
24504 0.5 0.5 240 130-140 8500 1180 220 Paper dry network
8903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
16704 0.7 0.7 160 90 12000 1350 165 Building materials dewatering
26908 0.5 0.9 26.4 69-75 5000 1364 240 Viscosit of the larger
12 Mesh 0.75 0.8 47 48   650 94 Paper pulp washing

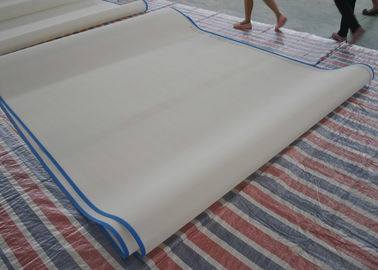

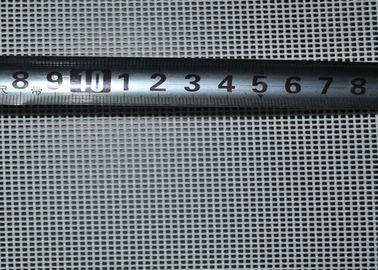

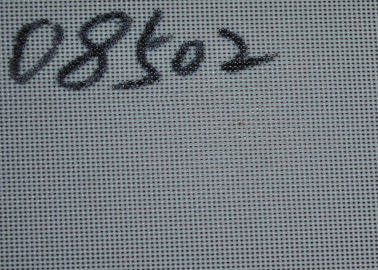

08502 Polyester Net Fabric Mesh Belt Hard Wearing For Food And Medicine

  • 08502 Polyester Net Fabric Mesh Belt Hard Wearing For Food And Medicine
  • 08502 Polyester Net Fabric Mesh Belt Hard Wearing For Food And Medicine
  • 08502 Polyester Net Fabric Mesh Belt Hard Wearing For Food And Medicine
Product Details:



Discription of White 08502 Polyester Mesh Belt 100% Monofilament for Food and Medicine:



1. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.

2. the width of polyester dryer screen belt mesh is usually 1 meter - 6 meter,the length is available as per requirement

3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans

To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.





4. the joining type of 05802 polyester mesh belt can be endless,steel pin joining,spiral ring joining and pin ring joining.



Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt



Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.





Application of 08502 polyester mesh screen belt:



Polyester Screen Dryer mesh Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.



Polyester Screen Dryer Mesh is also used for tailings disposal,colliery,food and medicine.





Features of 08502 polyester mesh screen belt:



  • hard wearing
  • flat surface
  • good air permeability
  • stable property
  • long lifespan.

Specifications of Polyester Dryer Screen Belt mesh

Polyester Monofilament Dryer Screen Belt
Weaving Type Model Thread Diameter Density(No.s/cm) Srength Air Permeability
(mm) (N/cm) (m3/m2h)
Warp Weft Warp Weft
2-shed plain weaving fabric 5802 0.75 0.8 4.7-5 4.8-5 940 20000
5102 1 1 4.7-5.2 4.3-5 1600 15000
6702 0.7 0.7 8 7 1600 11000
7102 0.7 1 6.6-7 4.3-4.6 1100 15000
8552 0.55 0.55 7.5-8 8.5-9 850 850-6500
9452 0.45 0.45 10 8.6 1600 16000
9502 0.5 0.5 8.5-9 10-10.5 750 10000
12502 0.5 0.5 13.5 8.5 1800 6500
3-shed plain weaving fabric 8603 0.5 0.6 10 9 1600 14000
8903 0.9 0.9 7.8-8 5-5.5 2100 7500-8500
7803 0.7 0.8 8 8 1600 10000
20353 0.3 0.35 22 14.5 1200 13000
20403 0.3 0.4 22 14.5 1200 13500

Monofilament Polyester Spiral Mesh Screen Fabric For Wastewater Treatment

  • Monofilament Polyester Spiral Mesh Screen Fabric For Wastewater Treatment
  • Monofilament Polyester Spiral Mesh Screen Fabric For Wastewater Treatment
Product Details:

Description



26908 Polyester Monofilament Mesh Belt for Sludge Dewatering Screen Fabric enjoy features of good aire permeability ,easy to clean,abrasion resistance ,high temperature resistant ,allows air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C



Applications:


26908 Polyester Monofilament Mesh Belt for Sludge Dehydration is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.

Specifications of Polyester Monofilament Mesh Belt for Sludge Dehydration:

Model Wire Diameter Density Root/10cm Air Permeability m3/m2h Net Weight g/m2 Strength kg/cm Used in
Wrap Weft Wrap Weft
14803 0.7 0.8 142 47-60 3900-8500 1400 240 Sludge,Squeeze juice
16803 0.7 0.8 156 46-50 6000 1400 265 Sludge,Squeeze juice
16904 0.75 0.9 156 47 8000 1800 280 Iron and steel industry sludge dewatering Living slude dewatering
121054 0.9 1.05 120 42 8000 1650 340 Iron and steel industry sludge dewatering
22903 0.5 0.9 220 50-55 9000 1200 200 Living slude dewatering
20703 0.5 0.7 200 70 10000 1000 185 Living slude dewatering
24504 0.5 0.5 240 130-140 8500 1180 220 Paper dry network
8903 0.9 0.9 78 50 8500 1430 210 industrial sludge dewatering
16704 0.7 0.7 160 90 12000 1350 165 Building materials dewatering
26908 0.5 0.9 26.4 69-75 5000 1364 240 Viscosit of the larger
12 Mesh 0.75 0.8 47 48   650 94 Paper pulp washing

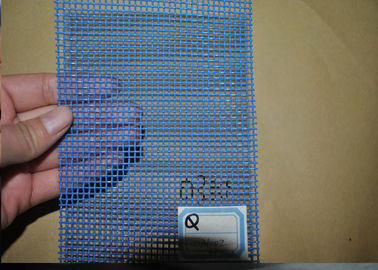

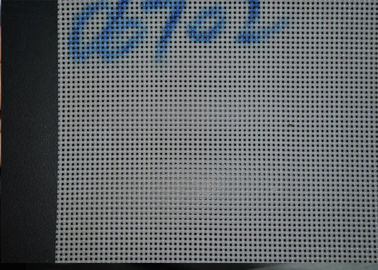

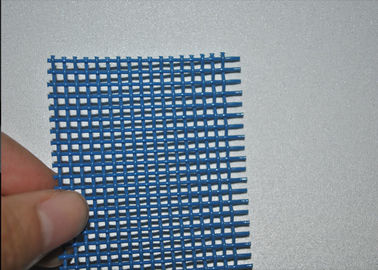

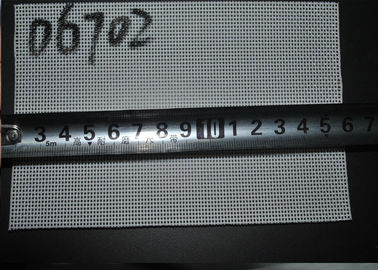

Plain Weave Polyester Dryer Screen Belt mesh High Temperature

  • Plain Weave Polyester Dryer Screen Belt mesh High Temperature
  • Plain Weave Polyester Dryer Screen Belt mesh High Temperature
  • Plain Weave Polyester Dryer Screen Belt mesh High Temperature
  • Plain Weave Polyester Dryer Screen Belt mesh High Temperature
Product Details:



Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Description:



Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric,which widely used in special lines,such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt.

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Application:



  • The 2-shed and 3-shed plain woven fabric is mainly used in special lines, such as paper pulps making, Sulplate pulp packing and pulp, fiberboard plabts as well as colliery, food and medicine as conveyor belt.

Plain Weave Polyester Mesh Belt With High Temperature Under 180 Degree Specification:



Weaving Type Model Thread Diameter Density(No.s/cm) Strength ((N/cm) Air Permeability (m3/m2h)
(mm)
Warp Weft Warp Weft
2-shed plain weaving 05802 0.75 0.8 4.7-5 4.8-5 940 20000
05102 1 1 4.7-5.2 4.3-5 1600 15000
06702 0.7 0.7 8 7 1600 11000
07102 0.7 1 6.6-7 4.3-4.6 1100 15000
08552 0.55 0.55 7.5-8 8.5-9 850 850-6500
09452 0.45 0.45 10 8.6 1600 16000
09502 0.5 0.5 8.5-9 10-10.5 750 10000
12502 0.5 0.5 13.5 8.5 1800 6500
3shed plain weaving 8603 0.5 0.6 10 9 1600 14000
8903 0.9 0.9 7.8-8 5-5.5 2100 7500-8500
7803 0.7 0.8 8 8 1600 10000
20353 0.3 0.35 22 14.5 1200 13000
