10 High Stretch Mesh Fabric , Polyester Dryer Screen For Mineral Separation
Product Details:
Discription of Polyester Plain weave mesh:
1. the width of polyester dryer screen belt is usually 1 meter - 6 meter,the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans
4. the joining type of polyester plain mesh belt can be endless,steel pin joining,spiral ring joining and pin ring joining.
Features of polyester Dryer mesh belt:
- hard-wearing
- flat surface
- good air permeability
- stable property against heat and moisture
- low thermal shrinking
- less elongation at heat
- a long lifespan
Specifications of Polyester Linear Screen Mesh Belt
| Polyester Linear Screen Mesh Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 | |

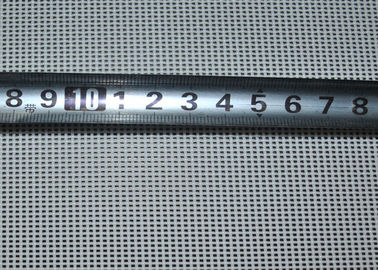

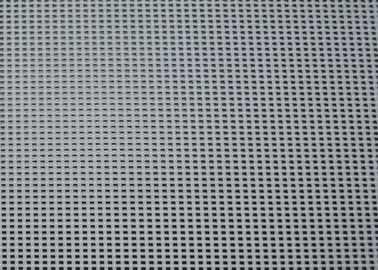

05802 White Polyester Stretch Mesh Fabric Screen Belt For Cardboard Pulp
Product Details:
Features of 05802 Polyester Mesh Belt Screen:
Polyester Mesh Belt Dryer Screen has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.
Application of Polyester Screen Belt:
Polyester Screen Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Screen mesh Belt is also used for tailings disposal,colliery,food and medicine.
Discription of Polyester Monofilament Dryer Screen Belt:
1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans

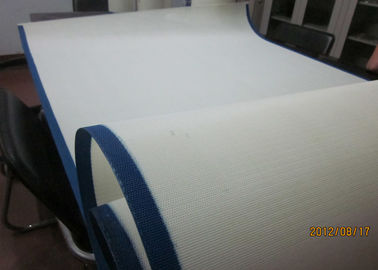

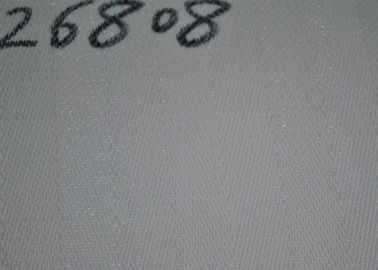

100% Monofilament 26808 Polyester Stretch Mesh Fabric For Sludge Dewatering
Product Details:
100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering
Application:
100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering enjoys features of good aire permeability ,easy to clean,abrasion resistance ,heat resistant njoys the features of air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C
100% Monofilament 26808 Polyester Mesh Belt For Sludge Dewatering is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.
2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance
Product Details:
Advantages of polyester mesh belt
1:Acid and Alkali resistance,high temperature resistance,long service life,non-toxic,is woven carpet canvas and general network several times.
2: With smooth surface,the tensile strength,good permeability,high heat transfer efficiency,for the user to save energy.
3:Install easy to use,interface without stain,strength can reach 100% normal network.
4:Adopts imported rubber adhesive side of the net body hard,high temperature is constant,not easy to fold,the characteristics of can adapt to the merits of different temperature changes.
The specification of polyester mesh belt
According to the weaving,polyester mesh belt can be divide into 3-shed,4-shed;According to the category,polyester mesh belt can be divided into one and a half layer,double-layer and flat wire fabric;according to the joint types,polyester mesh belt can be divided into insert,pin ring and spiral ring joint.
Application of polyester mesh belt
- 3-shed one and a half layer is suitable for drying papers less than 70g.
- 4-shed double-layer fabric is suitable for drying papers more than 70g
- Flat wire dryer fabric is suitable for the fore hearing box of the drying zone.
Specification
| Polyester Dryer Screen Forming Fabric for Paper Making | |||||||||
| Weave type | Model |
Thread diameter (mm) |
Dencity
(Number/cm) |
strength
(N/cm) |
Weight (KG/M²) |
Thickness (mm) |
Air permeability (APm³/m²h) |
||
| warp | weft | warp | weft | ||||||
| 3-shed | 22503 | 0.5 | 0.5 | 24 | 12 | 2000 | 1.06 | 1.9 | 8000 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 2000 | 0.99 | 1.7 | 8500 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 2000 | 1.1 | 1.9 | 7000 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 2000 | 1.02 | 1.8 | 6700 | |
| 4-shed | 20504 | 0.5 | 0.5 | 22 | 12 | 2000 | 1.15 | 2.0 | 15000 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 2000 | 1.26 | 2.1 | 12000 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 2100 | 1.3 | 2.1 | 11000 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 1800 | 0.85 | 2.0 | 8000 | |
| Round thread diameter | 4106 | 0.5 |
0.7 0.3 |
22.8 | 12.4 | 2200 | 1.3 | 1.75 | 6800 |
|
Flat Thread diameter |
4106-1 |
0.58 0.37 |
0.35 0.68 |
21 | 15 | 2000 | 1.2 | 1.5 | 2500 |
| 4106-2 | 0.58 0.37 |
0.35 0.68 |
21 | 14 | 2000 | 1.2 | 1.5 | 3000 | |
| 4106-3 |
0.58 0.37 |
0.35 0.68 |
21 | 13 | 2000 | 1.2 | 1.5 | 4000 | |
| 4106-4 |
0.58 0.37 |
0.35 0.68 |
21 | 13.5 | 2000 | 1.2 | 1.48 | 3500 |
|
Textile Wastewater Polyester Mesh Belt Blue For Drying Paper / Filtering
Product Details:
Description
Polyester mesh belt Is the use of textile machinery, using different weaving method of weaving mesh. Is one of the main drying, filtration materials, widely used in papermaking, sewage treatment, sugar, pharmaceutical, ceramics, food, printing, coal washing and other industries.
The product has the following characteristics
- Filter belt stripping performance is good, and easy to regenerate.
- The use of high-quality materials and advanced technology makes the mesh belt with high strength, so the product life is long, close to the import of similar products, can replace imports.
- Can meet the different filtration accuracy requirements (2-500um).
Applications of polyester mesh belt
- Large industrial production process filtration: with a variety of filters supporting widely used in tailings, coal washing, paper pulp, alumina, phosphoric acid, potash, fruit juice press, medicine filtration, food drying sterilization, citric acid filtration, titanium dioxide , Vegetable oil production, sludge drying and other industries filter.
- Company's products and domestic dehydration equipment manufacturers supporting the production, and praised by users.
