nylon mesh fabric

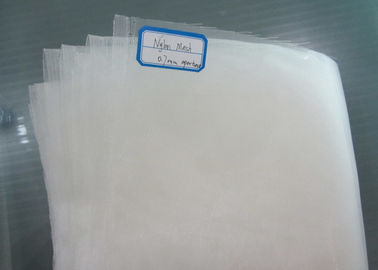

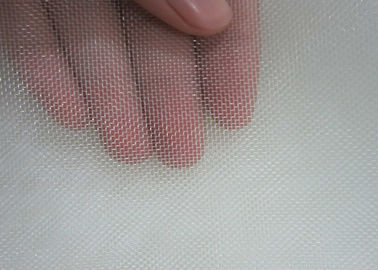

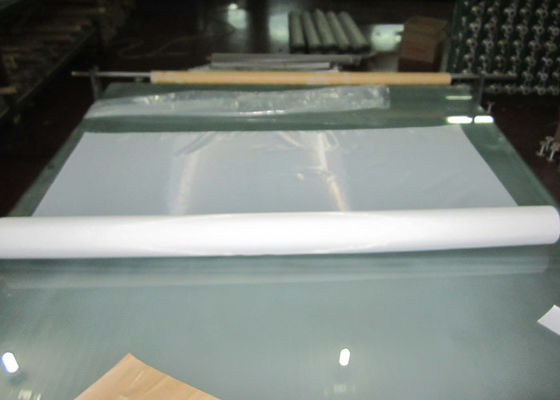

Monofilament Nylon Mesh Fabric , Micron Nylon Filter Mesh Cloth Abrasion Resistance

  • Monofilament Nylon Mesh Fabric  , Micron Nylon Filter Mesh Cloth Abrasion Resistance
  • Monofilament Nylon Mesh Fabric  , Micron Nylon Filter Mesh Cloth Abrasion Resistance
  • Monofilament Nylon Mesh Fabric  , Micron Nylon Filter Mesh Cloth Abrasion Resistance
Product Details:

Description:



Monofilament Nylon Filter Mesh has good resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14



Nylon Filter Cloth is of Good abrasion resistance and low coefficient of friction.

Working temperature Of micron Nylon Screen Mesh is typically around 239F (115C). Exposure to sunlight can cause discoloration (yellowing).



Water absorption of nylon filter cloth is very high.





Micron Nylon Filter Mesh fabric Application:



1. Used in areas as filtration and separation industry: Such as Flour milling,cron milling,grain milling



GG- Nylon Filter Mesh Specifications:

MILING NYLON FILTER MESH-GG
FABRIC NUMBER MESH OPENING (MICRON) OPEN AREA(%)
12GG 1800 61
14GG 1600 60
16GG 1320 59
18GG 1180 59
20GG 1000 57
22GG 950 57
24GG 850 53
26GG 800 53
28GG 710 53
30GG 670 53
32GG 600 51
34GG 560 49
36GG 530 50
38GG 500 47
40GG 475 48
42GG 450 48
44GG 425 46
45GG 400 47
47GG 375 47
50GG 355 48
52GG 335 46
54GG 315 44
58GG 300 45
60GG 280 45
62GG 275 44
64GG 265 43
66GG 250 46
68GG 243 44
70GG 236 44
72GG 224 42
74GG 212 40



XXX Miling Nylon Micron Mesh Specifications:



MILING NYLON MESH-XXX
FABRIC NUMBER MESH OPENING (MICRON) OPEN AREA(%)
7XXX 200 39
8XXX 180 39
8 ½2XXX 160 37
9XXX 150 38
9 ½XXX 140 37
10XXX 132 40
10 ½XXX 125 37
11XXX 118 34
12XXX 112 38
13XXX 100 32
14XXX 95 33
14 ½XXX 90 36
17 XXX 80 35


Food Grade Nylon Mesh Fabric With White Color For Paint Filtration , Nylon Blended

  • Food Grade Nylon Mesh Fabric With White Color For Paint Filtration , Nylon Blended
  • Food Grade Nylon Mesh Fabric With White Color For Paint Filtration , Nylon Blended
Product Details:

Description:



White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.



Features of nylon filter mesh

  • Non-toxic, odorless, tasteless, high strength, large elongation
  • Toughness, good elasticity, resistance to weak acid, oil, alkali, wear, temperature
  • Widely used

Specification of nylon filter mesh



Woven mesh specifications are the mesh size, wire diameter, aperture, width, etc., nylon network as a wide variety, use different, so the specifications are not the same, in general, for the screening of the mesh with a mesh of 60 -420 mesh, wire diameter and mesh have a corresponding ratio between the parameters, the smaller the smaller the diameter of the smaller diameter; for fisheries fishing on the larger mesh, wire diameter is also larger



Fabric
number
Mesh
count
Thread diameter Mesh
opening
Open
surface
Fabric
thickness
Weight
NO. Mesh/cm Mesh/inch micron micron % micron g/m2

JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 40 60 36 65 35
JPP120 120 305 40 43 25 70 42
JPP130 130 330 40 37 23 75 45



Food Grade Nylon Mesh Fabric , Durable Nylon Air Filter Mesh 5T-165T Count

  • Food Grade Nylon Mesh Fabric , Durable Nylon Air Filter Mesh 5T-165T Count
  • Food Grade Nylon Mesh Fabric , Durable Nylon Air Filter Mesh 5T-165T Count
  • Food Grade Nylon Mesh Fabric , Durable Nylon Air Filter Mesh 5T-165T Count
Product Details:



FDA Certification 100%Nylon Filter Mesh With White And Yellow Color​ Description:



1. Material: 100% nylon monofilament or doublefilament (polyester available if needed)

2. Weaving: Plain weave (Twill weave available if needed)

3. Mesh count: 5T~120T mesh/cm(13mesh~305mesh/inch)

4. Max. width: 365cm (143inch)

5. Color: white/yellow/black

6. Special size:We can provide products in special specifications according to your demand.



FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Application:



1. Used in areas as filtration and separation industry:such as food industry for milling filtering and



flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk.



2. Used in Liquid & Dust filtration:such as filters, filter bags, dust filter bags.







FDA Certification 100%Nylon Filter Mesh With White And Yellow Color​ Advantage:



1. High durability and best tensility: all threads are the best domestic or imported.
2. Nice appearance, standard size: all are imported worldly advanced production lines from Switzerland.
3. Clean and never depigment.
4. Faster turnaround time from the screen room to the pressroom .
5. Good diathermancy .
6. High air permeability .
7. Acid resistance and Alkali resistance .
8. Long working life & Hard wear.

FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Specification:





Fabric
number
Mesh
count
Thread diameter Mesh
opening
Open
surface
Fabric
thickness
Weight
NO. Mesh/cm Mesh/inch micron micron % micron g/m2

JPP4 4 10 550 1950 61 950 262
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 40 60 36 65 35
JPP120 120 305 40 43 25 70 42
JPP130 130 330 40 37 23 75 45
