monofilament polyester screens
High Tensile Monofilament Polyester Screens , Polyester Printing Mesh FDA Approved
Product Details:
Silk screen performance is good, high strength, eye hole accurate. Structural strength, good resistance to printing, high mesh accuracy, high dimensional accuracy, good dimensional stability, good resistance to drug performance, good ink performance; pull the net after the stability of the stability, printing accuracy and stability of the structure, can withstand Higher tension, low elongation; long life, in a very small net distance, and ink stripping performance is good; for a variety of large signs, billboards. Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk chemical fiber and other industries
Specification
| COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
| 15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
| 18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
| 20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
| 25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
| 30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
| 30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
| 40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
| 50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
| 50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
| 60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
| 60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
| 73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
| 80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
| 80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
| 85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
| 90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
| 100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
| 100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
| 110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
| 120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
| 120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
| 135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
| 135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
| 150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
| 160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
| 160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
| 180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
| 180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
| 200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
| 195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
| 230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
| 250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
| 280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
| 305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
| 355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
| 380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
| 420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
| 460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
84 Micron 100% Monofilament Polyester Screens 55 Thread For Textile Printing
Product Details:
Features of Polyester Printing Mesh:
- High tension threshold and breaking point
- high modulus,low elongation monofilament polyester yarn
- Resist to chemicals, abrasion, heat and moisture
- Minimal tension loss during stretching process
- Improved registration due to stable fabric tension
- Good antistatic
- No surface treatment
Application of Polyester Printing Mesh
- Textile printing
- T-shirt printing
- ceramic printing
- glass printing
- PCB printing industry.
Description
| name | 53" 84 micron 72T Polyester Printing Mesh 55 Thread For Textile Printing |
| mesh count per cm | 72 |
| thread diameter | 55 |
| color | white / yellow |
| opening size | 84 micron |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |

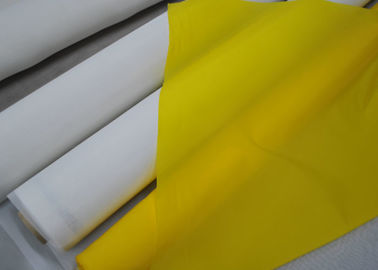

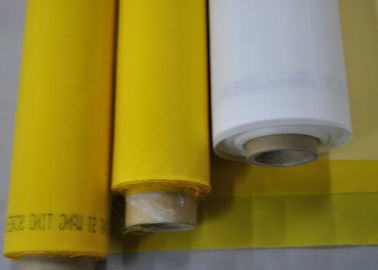

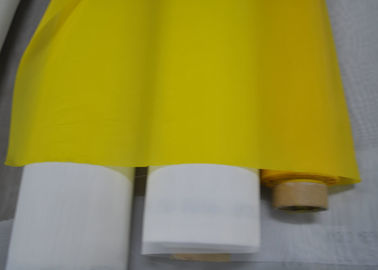

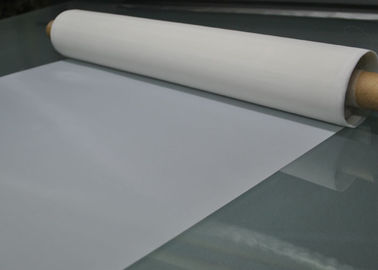

100% Monofilament Polyester Screen Printing Mesh For Glass Printing High Modulus
Product Details:
polyester screen printing mesh has features of High tension threshold and breaking point,high modulus,low elongation monofilament polyester yarn,Resist to chemicals, abrasion, heat and moisture,Minimal tension loss during stretching process,Improved registration due to stable fabric tension,Good antistatic,No surface treatment
Description
| name | 100% Monofilament White 120T - 34 Polyester Screen Printing Mesh For Glass Printing |
| mesh count per cm | 120 |
| thread diameter | 34 |
| color | white / yellow |
| opening size | 49 micron |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |

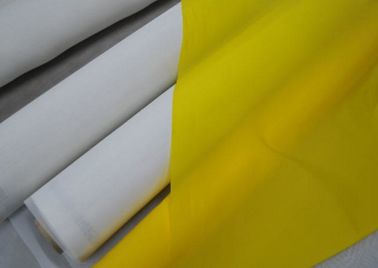

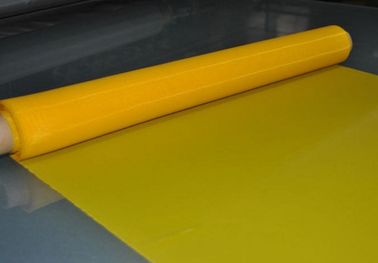

Monofilament Polyester Screens / Screen Printing Mesh Roll 65 Inch High Tension Threshold
Product Details:
Features of polyester screen printing mesh:
- High tension threshold and breaking point
- high modulus,low elongation monofilament polyester yarn
- Resist to chemicals, abrasion, heat and moisture
- Minimal tension loss during stretching process
- Improved registration due to stable fabric tension
- Good antistatic
- No surface treatment
Detailed Product Description
|
Product Name: |
White 65" 54T - 64 Micron Polyester Screen Printing Mesh For Electronics Printing |
Thread Diameter: |
27-400micron |
|---|---|---|---|
|
Mesh/inch: |
137 |
Width: |
65" |
|
Application: |
Electronics Screen Printing Mesh |
White 65" 54T - 64 Micron Polyester Screen Printing Mesh For Electronics Printing
Application
Polyester Screen Printing Mesh is widely used in Textile printing,T-shirt printing,ceramic printing,glass printing and PCB printing industry.
Description
|
name |
White 65" 54T - 64 Micron Polyester Screen Printing Mesh For Electronics Printing |
|
mesh count per cm |
54 |
|
thread diameter |
64 |
|
color |
white |
|
opening size |
121micron |
|
width |
115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
57
Product Details:
Our factory introduction
Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester screen printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.
Description
| name | 57" Yellow High Tension 64T - 64 Polyester Screen Printing Mesh For Electronics Printing |
| mesh count per cm | 64 |
| thread diameter | 64 |
| color | white/yellow |
| opening size | 92micron |
| width | 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm. |
