100 polyester mesh fabric

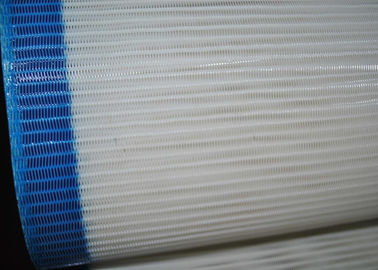

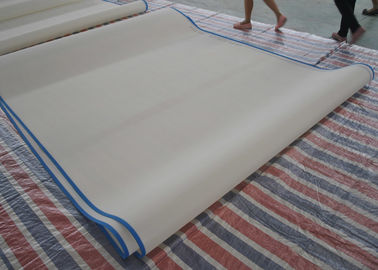

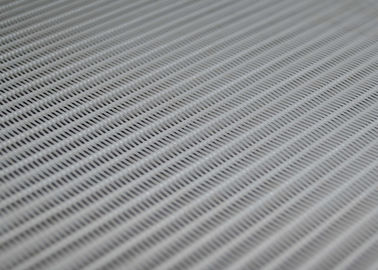

Large Loop 100 Polyester Mesh Fabric Belt Spiral Link 4070 For Food Stuff Processing
Product Details:
Large Loop Polyester Mesh Belt Spiral Link Dryer Fabric 4070 for Food Stuff Processing
Application
Large Loop Polyester Mesh Belt Spiral Link Dryer Fabric 4070 is used for paper making machine,drying process of printing and dyeing,dewatering sludge from quarries or mine,juicing press,conveyor belt in food processing.
Description:
Large Loop Polyester Mesh Belt Spiral Link Dryer Fabric for Food Stuff Processingwith loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.
According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.
According to stuff:Polyester Mesh Belt can be devided into Polyester Spiral Mesh Belt and Polyester Spiral Mesh Belt with Stuff,which is polyester wire,which can be added into the loop,the numbers of the wire can be 3,4,5.
According to color,Polyester Mesh Belt can be devided into white,blue,red and black.
Polyester Spiral Mesh Belt with stuff,this kind of polyester dryer screen belt is filled with stuff to reduce the air permeability and to intensive the opening ,then to reduce the material loss from the opening.
Polyester Spiral Mesh Belt with Stuff is mainly used in sludge desiccation,paper pulp washing,coal washing,chemicals,dehydration of wine bran,vinegar bran dehydration and other industries.It is better in the high ventilation part of drying part of paper-making machines.
| Polyester Spiral Dryer Mesh Belt | |||||
| Weaving Type | Model | Thread Diameter | Air permeability | ||
| (mm) | (m3/m2h) | ||||
| Warp | Weft | filled with stuff | |||
| Large Loop | 4070 | 0.9 | 1.1 | 0.9*4 | 5500±500 |
| 0.9*5 | 4500±500 | ||||
| Medium Loop | 3868 | 0.7 | 0.9 | 0.8*3 | 4750±500 |
| 0.8*4 | 4200±500 | ||||
| Small Loop | 3252 | 0.52 | 0.7 | 0.68*3 | 15000±500 |
Custom 100 Polyester Mesh Fabric / Plain Weave Mesh For Paper Pulps Making
Product Details:
1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans
4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.
Features of polyester Dryer mesh belt:
Polyester Plain Weave Mesh has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.
Application of Polyester Mesh Belt Plain Weave Screen:
Polyester Plain weave mesh belt screen is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Mesh Belt is also used for tailings disposal,colliery,food and medicine.
Specifications of Polyester plain weave mesh belt
| Polyester Linear Screen Mesh Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
|
22903 Sludge Dewatering Polyester Mesh Belt 100% Monofilament , Heat Resistant
Product Details:
Application:
22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric has features of good aire permeability ,easy to clean,abrasion resistance ,heat resistant njoys the features of air and water permeation,while not allowing the sludge.Due to its unique structure,the sludge will get easily off the belt after filtration. The MAX constant working temperature of sludge dewatering mesh belt is 115ºC , instantaneous high temperature can be 200°C
22903 Polyester Mesh Belt Sludge Dewatering Screen Fabric is widely used in wastewater treatment ,paper and tissue ,coal mining plants and jucie pressing of grapes,fruits.
Edge treatment of polyester mesh belt:
1. canvas edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment
