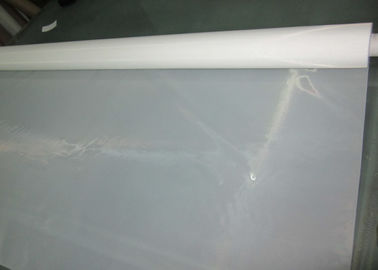

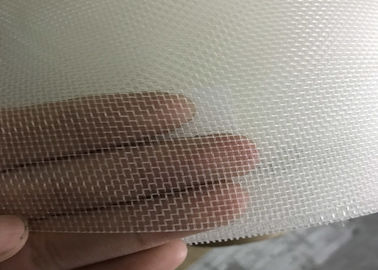

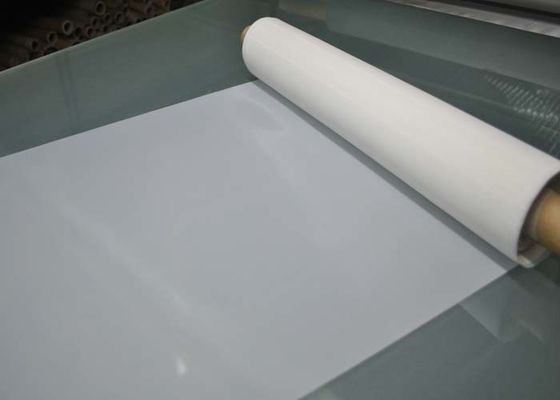

FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Description:
1. Material: 100% nylon monofilament or doublefilament (polyester available if needed)
2. Weaving: Plain weave (Twill weave available if needed)
3. Mesh count: 5T~120T mesh/cm(13mesh~305mesh/inch)
4. Max. width: 365cm (143inch)
5. Color: white/yellow/black
6. Special size:We can provide products in special specifications according to your demand.
FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Application:
1. Used in areas as filtration and separation industry:such as food industry for milling filtering and
flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk.
2. Used in Liquid & Dust filtration:such as filters, filter bags, dust filter bags.
FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Advantage:
1. High durability and best tensility: all threads are the best domestic or imported.
2. Nice appearance, standard size: all are imported worldly advanced production lines from Switzerland.
3. Clean and never depigment.
4. Faster turnaround time from the screen room to the pressroom .
5. Good diathermancy .
6. High air permeability .
7. Acid resistance and Alkali resistance .
8. Long working life & Hard wear.
FDA Certification 100%Nylon Filter Mesh With White And Yellow Color Specification:
Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
Description:
Monofilament Nylon Filter Mesh has good resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14
Nylon Filter Cloth is of Good abrasion resistance and low coefficient of friction.
Working temperature Of micron Nylon Screen Mesh is typically around 239F (115C). Exposure to sunlight can cause discoloration (yellowing).
Water absorption of nylon filter cloth is very high.
Micron Nylon Filter Mesh fabric Application:
1. Used in areas as filtration and separation industry: Such as Flour milling,cron milling,grain milling
GG- Nylon Filter Mesh Specifications:
MILING NYLON FILTER MESH-GG | ||
FABRIC NUMBER | MESH OPENING (MICRON) | OPEN AREA(%) |
12GG | 1800 | 61 |
14GG | 1600 | 60 |
16GG | 1320 | 59 |
18GG | 1180 | 59 |
20GG | 1000 | 57 |
22GG | 950 | 57 |
24GG | 850 | 53 |
26GG | 800 | 53 |
28GG | 710 | 53 |
30GG | 670 | 53 |
32GG | 600 | 51 |
34GG | 560 | 49 |
36GG | 530 | 50 |
38GG | 500 | 47 |
40GG | 475 | 48 |
42GG | 450 | 48 |
44GG | 425 | 46 |
45GG | 400 | 47 |
47GG | 375 | 47 |
50GG | 355 | 48 |
52GG | 335 | 46 |
54GG | 315 | 44 |
58GG | 300 | 45 |
60GG | 280 | 45 |
62GG | 275 | 44 |
64GG | 265 | 43 |
66GG | 250 | 46 |
68GG | 243 | 44 |
70GG | 236 | 44 |
72GG | 224 | 42 |
74GG | 212 | 40 |
XXX Miling Nylon Micron Mesh Specifications:
MILING NYLON MESH-XXX | ||
FABRIC NUMBER | MESH OPENING (MICRON) | OPEN AREA(%) |
7XXX | 200 | 39 |
8XXX | 180 | 39 |
8 ½2XXX | 160 | 37 |
9XXX | 150 | 38 |
9 ½XXX | 140 | 37 |
10XXX | 132 | 40 |
10 ½XXX | 125 | 37 |
11XXX | 118 | 34 |
12XXX | 112 | 38 |
13XXX | 100 | 32 |
14XXX | 95 | 33 |
14 ½XXX | 90 | 36 |
17 XXX | 80 | 35 |
Features of FDA Nylon Filter Micron Mesh Fabric:

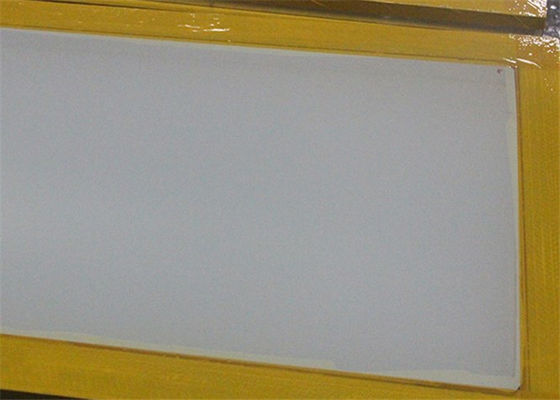

FDA Nylon Filter Micron Mesh Fabric Application:
1.Suitable for fine filtering of liquid and food processing ,food protection,water strain ,art and design,modelling,photogrophy and insect gardening net
Description:
White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.

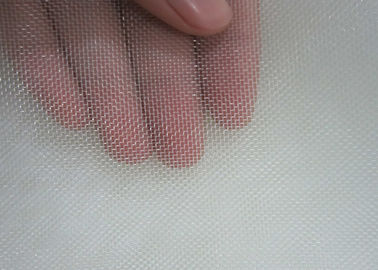

Features of nylon filter mesh
Application of nylon filter mesh
1. used in refrigeration air conditioning equipment, air cleaners and air purification equipment and engineering dust filter early use.
2. Office buildings, conference rooms, hospitals, shopping malls, gymnasiums, airports and other large civil building ventilation system; general factory centralized ventilation and air conditioning system; clean room centralized ventilation air conditioning system in the primary filter
Packing and Delivery

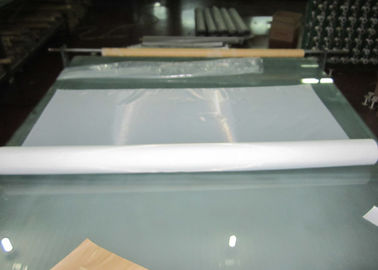

Packing:Plastic bag per roll inside and carton box outside

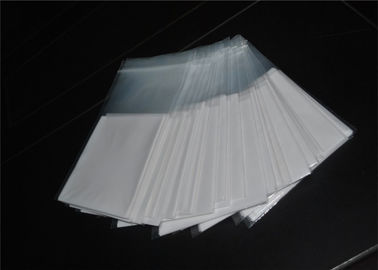

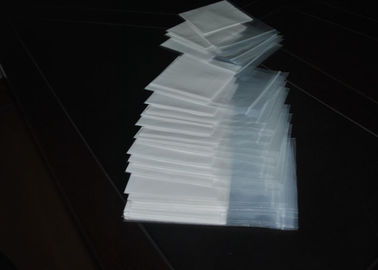

Or cut it into small pieces,then use plastic bag.
According to your request,
Description:
White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.
Features of nylon filter mesh
Specification of nylon filter mesh
Woven mesh specifications are the mesh size, wire diameter, aperture, width, etc., nylon network as a wide variety, use different, so the specifications are not the same, in general, for the screening of the mesh with a mesh of 60 -420 mesh, wire diameter and mesh have a corresponding ratio between the parameters, the smaller the smaller the diameter of the smaller diameter; for fisheries fishing on the larger mesh, wire diameter is also larger
Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
