2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance

China 2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance supplier
2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance supplier 2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance supplier 2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance supplier

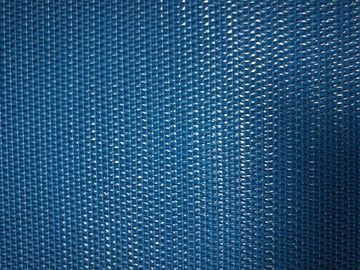

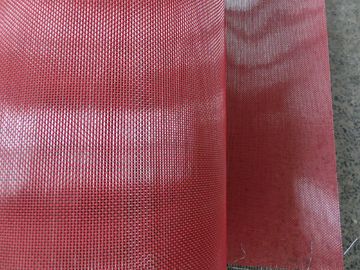

Large Image :  2-3 Shed Weave Nylon Wire Mesh Dryer Fabric For Papermaking , High Performance

Product Details:

Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Lis

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inaide And Plywood Case Outside Or According To Your Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade Assurance
Supply Ability: 2000 Square Meters Per Quarter
Contact Now
Detailed Product Description
Material: 100%Polyester Technical: Weave
Color: White,,Red Name: 100%Polyester Plain Weave Mesh Belt For Conveyor
Product Name: Polyester Mesh Belt Thread Diameter: 0.5-1.0mm

2-Shed Or 3-Shed Polyester Mesh Belt With Dryer Fabric For Papermaking




Advantages of polyester mesh belt

1:Acid and Alkali resistance,high temperature resistance,long service life,non-toxic,is woven carpet canvas and general network several times.
2: With smooth surface,the tensile strength,good permeability,high heat transfer efficiency,for the user to save energy.
3:Install easy to use,interface without stain,strength can reach 100% normal network.
4:Adopts imported rubber adhesive side of the net body hard,high temperature is constant,not easy to fold,the characteristics of can adapt to the merits of different temperature changes.



The specification of polyester mesh belt



According to the weaving,polyester mesh belt can be divide into 3-shed,4-shed;According to the category,polyester mesh belt can be divided into one and a half layer,double-layer and flat wire fabric;according to the joint types,polyester mesh belt can be divided into insert,pin ring and spiral ring joint.



Application of polyester mesh belt



  • 3-shed one and a half layer is suitable for drying papers less than 70g.
  • 4-shed double-layer fabric is suitable for drying papers more than 70g
  • Flat wire dryer fabric is suitable for the fore hearing box of the drying zone.

Specification

Polyester Dryer Screen Forming Fabric for Paper Making
Weave type Model

Thread diameter

(mm)

Dencity



(Number/cm)

strength



(N/cm)

Weight

(KG/M²)

Thickness

(mm)

Air permeability

(APm³/m²h)

    warp weft warp weft
3-shed 22503 0.5 0.5 24 12 2000 1.06 1.9 8000
  22453 0.45 0.45 24 13 2000 0.99 1.7 8500
  24503 0.5 0.5 25 12 2000 1.1 1.9 7000
  24453 0.45 0.45 25 13 2000 1.02 1.8 6700
4-shed 20504 0.5 0.5 22 12 2000 1.15 2.0 15000
  22504 0.5 0.5 24 12 2000 1.26 2.1 12000
  24504 0.5 0.5 26 12 2100 1.3 2.1 11000
  18504 0.5 0.5 20 11 1800 0.85 2.0 8000
Round thread diameter 4106 0.5

0.7

0.3

22.8 12.4 2200 1.3 1.75 6800

Flat

Thread diameter

4106-1

0.58

0.37

0.35

0.68

21 15 2000 1.2 1.5 2500
  4106-2 0.58
0.37

0.35

0.68

21 14 2000 1.2 1.5 3000
  4106-3

0.58

0.37

0.35

0.68

21 13 2000 1.2 1.5 4000
  4106-4

0.58

0.37

0.35

0.68

21 13.5 2000 1.2 1.48 3500

Shipping:

  •  For small quantity, shipped by courier.
  •  For large quantity, shiped by air or by sea.
  •  Tracking number will be emailed to you after order has been shipped.
  •  If you have forwarder in China, we can send to your forwarder for free.
