Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant

China Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant supplier
Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant supplier Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant supplier

Large Image :  Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant

Product Details:

Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Lyd

Payment & Shipping Terms:

Minimum Order Quantity: 2meter
Price: Negotiable
Packaging Details: Plastic bag inside and plywood case outside or according to your need.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal,Trade assurance
Supply Ability: 300 meter per month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 316 316L 310 430 Application: Food Drying,cooling,freezing And So On
Technique: Woven Mesh Hot Search: Wire Mesh Conveyor Belt
Type: Spiral,B Type,herringbone,horseshoe Color: Silver

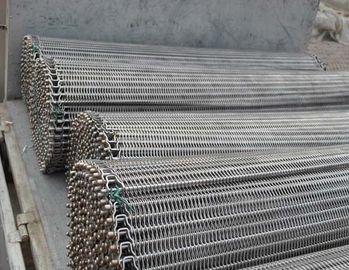

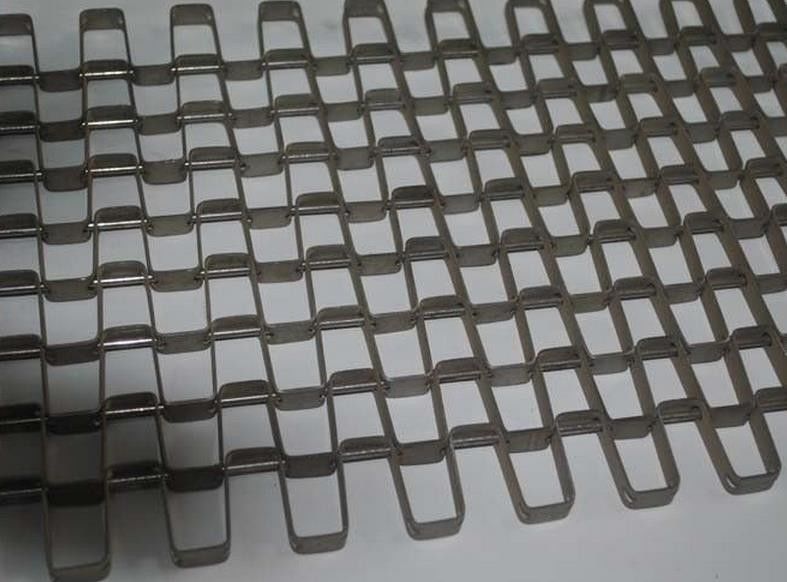

Food Drying Stainless Steel Wire Mesh Conveyor Belt With Chain



Type of wire mesh belt:

1. material:stainless steel 201/304/316/316L
2. wire diameter:0.8-3.0mm
3. mesh width: 150 ~ 5500mm
4. mesh belt speed: 0.15 ~ 0.50m/min
5. using temperature: -40 ~ 1300
6. the edge of the form: curved edge, upsetting head, welding and other forms.

7. Shape:herringbone mesh belt,hook flower mesh belt,diamond mesh belt,etc.
8. waterproof paper,in plywood case or as customer's requirements

Material of wire mesh belt:

stainless steel 304 316 316L 430 310 ,carbon steel galvernized steel and so on.

Description

The mesh conveyor belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.

Spiral wire link mesh belt is the most widely used mesh belt.It can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size.

The round end of spiral  wire balanced belt allow goods on it transfer to the following stage processing very easily.

spiral wire belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Spiral wire belt with chain  has advantage of positive driving ,running streight charactor

The material of the wire mesh belt can be stainless steel 304,316,316L,310,430,2080 ,carbon steel and galvanized steel.

Features of wire mesh conveyor belt:

1. Open mesh construction for quick drainage and free air circulation.
2. A smooth, flat surface.
3. Sanitary -- easily cleaned.
4. Easy replacement of damaged or worn sections.
5. Endless splicing.
6. Economical versus alternative metal conveyor belts.
7. High strength to weight ratio.
8. Positive sprocket drive.


Advantage of wire mesh conveyor belt:

  • corrosion resistant,both acid and alkali resistant
  • high temperature resistant,can bear 2000 degree centigrade
  • long time service
  • heavy loading,rod can be added to increase its loading weight.


Applications of wire mesh conveyor belt:


  1. Quick-frozen, baking machinery plane conveyor, screw conveyor,
  2. Food machinery of the cleaning, sterilization, drying, cooling, cooking and so on
  3. Glass machinery lose bottle annealing, roast flowers, etc.
  4. All kinds of pipeline transport.
  5. Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
  6. Powder metallurgy, metal heat treatment, hardening, sintering, brazing, roasting, bright, black, bearing, carburizing high-temperature LuWang belt, baffle type drying conveyor mesh belt, mesh belt, foam nickel mesh belt production line, washing machine, winding machine, drying machine, dryer, curing LuWang belt.Each delivery such as process equipment.

Before sending inquiry ,the following wire mesh belt information need to be told:


material such as stainless steel 304,316,316L,310,430 and so on
datas spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement such as working temperature,laoding weight
size of the belt wide and length can be designed according to customer`s requriement.


Or you can refer to the following wire mesh conveyor belt drawing when supply us information before our quotation:


Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant

Food Drying Stainless Steel Conveyor Chain Belt Silver High Temperature Resistant
