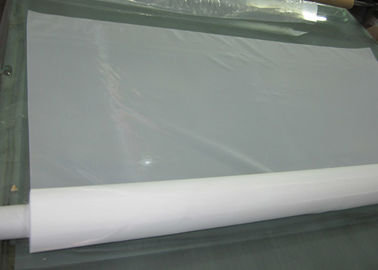

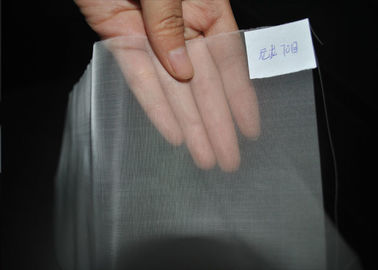

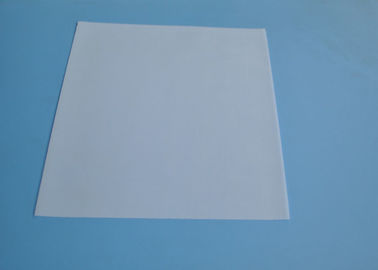

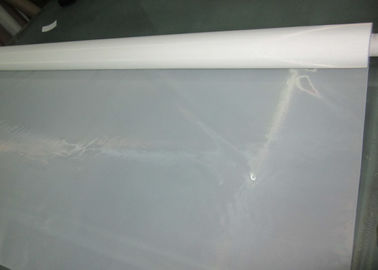

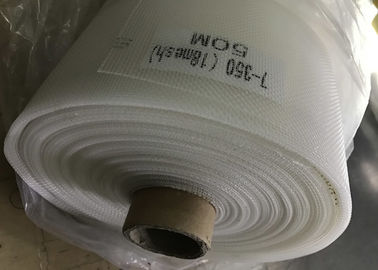

nylon mesh filter fabric

Description:

1. Material: 100% nylon (polyester available if needed)

2. Weaving: Plain weave (Twill weave available if needed)

3. Mesh Count: 4T~140T mesh/cm(13mesh~355 mesh/inch)

4. Max. width: 365cm (143inch)

5. Color: white/yellow/black

6. Monofilament or Doublefilament

7. We can provide products in special specifications according to your demand.

Application:

100%nylon is a versatile material due to its great strength, flexibility, long life and resistance to abrasion. Filtration rates can be from 27% to 78%. Such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk etc.

Advantage:

Non-toxic, odourless, tasteless, high strength, high elongation, good elasticity. With high toughness, good elasticity, resistance to weak acid, oil resistance, alkali resistance, wear resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics. Its application range is very widely.

Specification:

Description:

Nylon filter mesh material performance: acid, weak alkali resistance.Wear resistance,corrosion resistance, good resilience, conductive performance is poor.Polyester fibers are generally of heatresistant in 130 °C, the product has ordinary felt kind of filter bout some advantages, and wear resistance is very good, has the very high costperformance and become the largest variety in mat type of filter material usage.

Advantage:

• wire diameter:40-550micron
• dries easily
• uniformity thread diameter to provide precise aperture
• can be dyed
• smooth surface to help seperate filtered partical easily
• resistant to alkali,abrasion and common solvents
• can work under 130°c

Used in areas as filtration and separation industry:

Nylon Filter Mesh Fabric is suitable for fine filtering of liquid and food processing ,food protection,water strain ,art and design,modelling,photogrophy and insect gardening net.

• Flour milling,cron milling,grain milling
• Mining
• Agriculture
• Aquaculture
• medical and laboratory.
• infusion and transfusion filters
• micro-aggregate filters
• arterial and venous filters in oxygenator reservoirs and blood bags

GG-Miling Nylon Filter Mesh Specifications:

XXX Miling Nylon Mesh Specifications:

Description:

Nylon filter is mainly made of P.P fiber textile molding. Acid and alkali resistance, good corrosion resistance. Low resistance, can be repeated cleaning, high economy. The length of the fibers and dust particles are easy to clean, and the filtration efficiency is not affected by cleaning. Good impact resistance.

Features of nylon filter mesh

• Imported polyamide monofilament fiber woven filter, wear, high strength, long life, the use of good results
• High dust collection, early resistance, dust and strong performance, can be used repeatedly cleaning
• Ultra-thin aluminum alloy frame, can be made with a handle interconnected into a group, easy to change and safe

Detailed Product Description

Description:

1. Material: 100% nylon monofilament

2. Weaving: Plain weave

3. opening size:28-2000 micron

4. Width:127cm is used widely

5. Color: white

Mesh Nylon Filter Cloth FDA Certificate for Liquid / Solid / Air Sieving Application:

1. Used in areas as filtration and separation industry:

GG or XXX Nylon Filter cloth is widely used in nflour filtering, grain filtering,corn filtering industry

Mesh Nylon Filter Cloth FDA Certificate for Liquid / Solid / Air Sieving Advantage:

1. Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-14
2. Good abrasion resistance and low coefficient of friction.
3. Working temperature is typically around 239F (115C). Exposure to sunlight can cause discoloration (yellowing).
4. Water absorption is very high.
5. softening point is between 170°C and 230°C
6. melting point is between 210°C and 250°C
