silk screen printing fabric

DPP Plain Weave 180 Silk Screen Printing Fabric Screen For Glass Containers Printing

  • DPP Plain Weave 180 Silk Screen Printing Fabric Screen For Glass Containers Printing
  • DPP Plain Weave 180 Silk Screen Printing Fabric Screen For Glass Containers Printing
Product Details:

1.Feature Advantage



And we also served polyester mesh series into bags, cutting disc, round pieces, ribbon and any customized shapes for filtering.



1. Faster turn around time from the screen room to the press room

2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Factories for manufacturing





2.Description



Polyester printing mesh using high-precision high-quality monofilament polyester network, with high precision, stable tension and other characteristics, and excellent dimensional stability, making the printing will not deviate, and to ensure a high strength and low elongation, Can greatly extend the service life of the screen.

The special width is available as customer's requirement,and the width is up to 3.6meter.



3.Application





1. Glass Containers Printing



Perfumes,cosmetics and drink bottles are decorated with screen printing methods.



2. Printing Mesh for Textile



Polyester screen printing can transfer thick ink deposits and creat special effects to make itto be optimal process to print high quality commerical garment.



3. Printing Mesh for Glass



Pharmacy glass appliance printing

Home appliance printing.



4.Specificaitons



COUNT (INCH) COUNT (CM) DIAMETER (UM) OPEPING (UM) OPEN AREA(%) THICKNESS(UM) VOLUME (CM³/CM²) MAX TEN SION(N/CM)
15 6 400 1270 64 720 460 30-60
18 7 350 1078 64 640 410 30-60
20 8 300 950 58 550 319 30-60
25 10 250 750 56 620 347 30-60
30 12 250 583 49 450 220 30-60
30 12 150 683 67 300 201 30-60
40 16 200 425 46 400 184 30-60
50 20 80 420 71 120 85 35-37
50 20 150 350 49 260 127 30-60
60 24 100 316 58 136 78 35-40
60 24 120 297 50 240 120 35-60
73 29 120 225 43 240 103 35-60
80 32 64 248 63 95 59 30-34
80 32 100 212 46 200 92 35-40
85 34 100 195 44 221 97 35-40
90 36 100 178 41 216 88 35-40
100 39 55 200 61 88 53 25-30
100 39 80 176 47 150 70 35-37
110 43 80 153 43 130 56 35-37
120 47 55 158 55 88 48 25-30
120 47 71 142 44 135 59 30-34
135 53 55 133 50 86 43 25-30
135 53 64 125 44 100 44 26-31
150 59 64 105 38 100 38 26-31
160 64 55 101 42 98 41 25-30
160 64 64 92 35 120 42 30-34
180 72 48 91 43 78 66 27-29
180 72 55 84 37 100 37 25-30
200 80 48 77 38 74 28 27-29
195 77 55 75 33 105 34 25-30
230 90 48 63 33 85 28 27-29
250 100 40 60 36 70 25 20-24
280 110 40 51 31 85 26 20-24
305 120 40 43 27 68 18 20-24
355 140 34 37 27 58 15 22-24
380 150 31 36 29 46 13 21-23
420 165 31 30 24 46 11 21-23
460 180 27 28 26 56 14 20-22


87 Inch 140T Silk Screen Printing Mesh Roll 40 Micron For Textile / Ceramic

  • 87 Inch 140T Silk Screen Printing Mesh Roll 40 Micron For Textile / Ceramic
  • 87 Inch 140T Silk Screen Printing Mesh Roll 40 Micron For Textile / Ceramic
Product Details:


Features of Polyester Printing Mesh:

  • High tension threshold and breaking point
  • high modulus,low elongation monofilament polyester yarn
  • Resist to chemicals, abrasion, heat and moisture
  • Minimal tension loss during stretching process
  • Improved registration due to stable fabric tension
  • Good antistatic
  • No surface treatment

Description



name 87" 31 Thread Diameter 140T Polyester Printing Mesh For Silk Screen Printing
mesh count per cm 140
thread diameter 31
color white / yellow
opening size 40 micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.



Application of Polyester Printing Mesh



  • Textile printing
  • T-shirt printing
  • ceramic printing
  • glass printing
  • PCB printing industry.

Our factory introduction



Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.

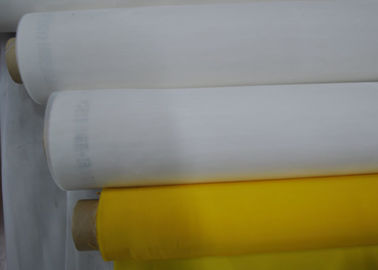

50 Inch Polyester Silk Screen Printing Fabric Mesh , Silk Screen Mesh Roll

  • 50 Inch Polyester Silk Screen Printing Fabric Mesh , Silk Screen Mesh Roll
Product Details:



Features of Silk Screen Printing Mesh:



1. Polyester Silk Screen Printing Mesh with high quality domestic and imported raw material,advanced weaving looms and test instruments,we can supply the first class polyester
2. The special width is available as customer's requirement,and the width is up to 3.65 meter.
3. Weaving Type:Plain
4. Water Resistance.
5. The physical properties are stable under high pressure



Description



name 50" Polyester Monofilament FDA 100T - 40 Silk Screen Printing Mesh for Textile Printing
mesh count per cm 100
thread diameter 40
color white / yellow
opening size 60 micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.

Application of Silk Screen Printing Mesh



Silk Screen Printing Mesh is maily used for screen printing,such as t-shirt screen printing,textile screen printing,glass screen printing,PCB Screen printing,ceramics screen printing.

Silk Screen Printing Mesh is also used as filtering material,such as filtering coffee,tea,flour



Our factory introduction



Anping County PFM Screen Co.,Ltd is located in the famous "home town of wire mesh" -Anping county industrial park, covers an area of 40000 square meters, construction area of 11000 square meters, It has 10000 grade clean production workshop 1500 square meters, employees 163 people, engineering technical personnel 56 people.Introduced the world's most advanced polyester silk screen printing mesh production line including Switzerland 330 cm p7100 gripper loom, German intelligent electronic sectional warping machines, automatic heat setting machine, washing machine and other equipment of 46.Has the most advanced test equipments.

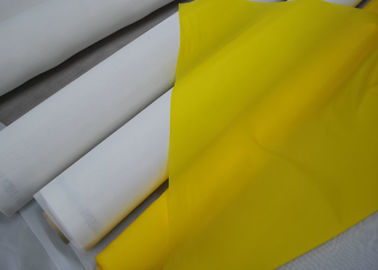

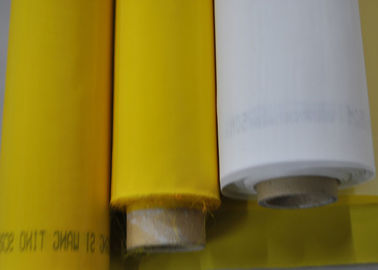

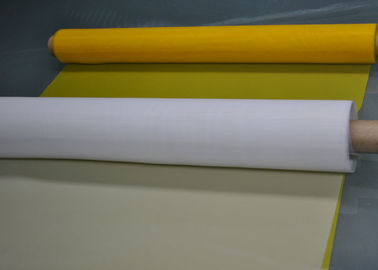

100% Monofilament Polyester Mesh For Textile Printing 120T - 34 White / Yellow Color

  • 100% Monofilament Polyester Mesh For Textile Printing 120T - 34 White / Yellow Color
  • 100% Monofilament Polyester Mesh For Textile Printing 120T - 34 White / Yellow Color
  • 100% Monofilament Polyester Mesh For Textile Printing 120T - 34 White / Yellow Color
Product Details:

Application of Silk Screen Printing Mesh



Silk Screen Printing Mesh is maily used for screen printing,such as t-shirt screen printing,textile screen printing,glass screen printing,PCB Screen printing,ceramics screen printing.

Silk Screen Printing Mesh is also used as filtering material,such as filtering coffee,tea,flour



Features of Silk Screen Printing Mesh:



1. Polyester Silk Screen Printing Mesh with high quality domestic and imported raw material,advanced weaving looms and test instruments,we can supply the first class polyester
2. The special width is available as customer's requirement,and the width is up to 3.65 meter.
3. Weaving Type:Plain
4. Water Resistance.
5. The physical properties are stable under high pressure



Detailed Product Description
Product Name: White / Yellow 120T - 34 100% Polyester Monofilament Silk Screen Printing Mesh For Textile Printing Hot Search: Micron Screen Printing Polyester Mesh Fabric
Material: 100% Monofilament Thread Application: Textile Printing Screens
Width: 320cm Length: 30-70meter Per Roll
Mesh Count Per Inch:

305

Description



name 120T - 34 Silk Screen Printing Mesh for glass printing 100% polyester monofilament
mesh count per cm 120
thread diameter 34
color white / yellow
opening size 49 micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.

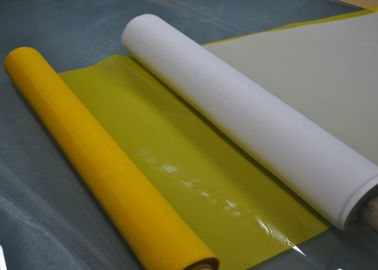

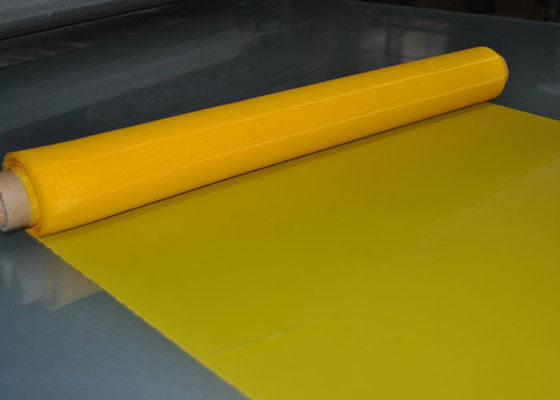

365cm Width Silk Screen Printing Fabric Mesh With 380 Count , Weaving Type

  • 365cm Width Silk Screen Printing Fabric Mesh With 380 Count , Weaving Type
  • 365cm Width Silk Screen Printing Fabric Mesh With 380 Count , Weaving Type
Product Details:

Features of Silk Screen Printing Mesh:



1. Polyester Silk Screen Printing Mesh with high quality domestic and imported raw material,advanced weaving looms and test instruments,we can supply the first class polyester
2. The special width is available as customer's requirement,and the width is up to 3.65 meter.
3. Weaving Type:Plain
4. Water Resistance.
5. The physical properties are stable under high pressure



Description



name SGS Certificate140T - 31 Polyester Silk Screen Printing Mesh for Screen Printing
mesh count per cm 140
thread diameter 31
color white / yellow
opening size 40 micron
width 115cm,127cm,136cm,145cm,157cm,165cm,188cm,220cm and MAX width can be 3.65cm.
