Feature advantage
Application
1. Monofilament polyester mesh for Garments (T-shirts, commercial garments)
2. For Textile (Flatbed textile,High-end textile)
3. For Ceramics (dishes,tiles,earthenware,fine china,porcelain arts,crafts etc.)
4. For Electronics (Membrane Switches,Printed Circuit Boards)
5. For Glass (pharmacy glass appliance printing,home appliance printing,automotive glass printing etc.)
Material: | 100%Polyester | Thread Diameter: | 30-250micron |
---|---|---|---|
Mesh: | 30-550mesh/inch | Length: | 30-70m/roll Or Cut Into Pieces. |
Width: | 1.15-3.6m | Delivery: | 5-10days |
Weave: | Plain Weave Or Twill Weave | Aperture: | 23-743micron |
1. Description
2. Application
We mainly offer high quality and high precision polyester and polyamide bolting screen ranging from 60-420 mesh. This product is widely used in printing and plate-making in electronic, textile, ceramics industry, also used for melting filtration in space flight, petroleum chemical and other high-tech fields. This product is the most advanced high-tech products for silk printing.
3.Specification
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) | MAX TEN SION(N/CM) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 | 30-60 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 | 30-60 |
20 | 8 | 300 | 950 | 58 | 550 | 319 | 30-60 |
25 | 10 | 250 | 750 | 56 | 620 | 347 | 30-60 |
30 | 12 | 250 | 583 | 49 | 450 | 220 | 30-60 |
30 | 12 | 150 | 683 | 67 | 300 | 201 | 30-60 |
40 | 16 | 200 | 425 | 46 | 400 | 184 | 30-60 |
50 | 20 | 80 | 420 | 71 | 120 | 85 | 35-37 |
50 | 20 | 150 | 350 | 49 | 260 | 127 | 30-60 |
60 | 24 | 100 | 316 | 58 | 136 | 78 | 35-40 |
60 | 24 | 120 | 297 | 50 | 240 | 120 | 35-60 |
73 | 29 | 120 | 225 | 43 | 240 | 103 | 35-60 |
80 | 32 | 64 | 248 | 63 | 95 | 59 | 30-34 |
80 | 32 | 100 | 212 | 46 | 200 | 92 | 35-40 |
85 | 34 | 100 | 195 | 44 | 221 | 97 | 35-40 |
90 | 36 | 100 | 178 | 41 | 216 | 88 | 35-40 |
100 | 39 | 55 | 200 | 61 | 88 | 53 | 25-30 |
100 | 39 | 80 | 176 | 47 | 150 | 70 | 35-37 |
110 | 43 | 80 | 153 | 43 | 130 | 56 | 35-37 |
120 | 47 | 55 | 158 | 55 | 88 | 48 | 25-30 |
120 | 47 | 71 | 142 | 44 | 135 | 59 | 30-34 |
135 | 53 | 55 | 133 | 50 | 86 | 43 | 25-30 |
135 | 53 | 64 | 125 | 44 | 100 | 44 | 26-31 |
150 | 59 | 64 | 105 | 38 | 100 | 38 | 26-31 |
160 | 64 | 55 | 101 | 42 | 98 | 41 | 25-30 |
160 | 64 | 64 | 92 | 35 | 120 | 42 | 30-34 |
180 | 72 | 48 | 91 | 43 | 78 | 66 | 27-29 |
180 | 72 | 55 | 84 | 37 | 100 | 37 | 25-30 |
200 | 80 | 48 | 77 | 38 | 74 | 28 | 27-29 |
195 | 77 | 55 | 75 | 33 | 105 | 34 | 25-30 |
230 | 90 | 48 | 63 | 33 | 85 | 28 | 27-29 |
250 | 100 | 40 | 60 | 36 | 70 | 25 | 20-24 |
280 | 110 | 40 | 51 | 31 | 85 | 26 | 20-24 |
305 | 120 | 40 | 43 | 27 | 68 | 18 | 20-24 |
355 | 140 | 34 | 37 | 27 | 58 | 15 | 22-24 |
380 | 150 | 31 | 36 | 29 | 46 | 13 | 21-23 |
420 | 165 | 31 | 30 | 24 | 46 | 11 | 21-23 |
460 | 180 | 27 | 28 | 26 | 56 | 14 | 20-22 |
Feature advantage
Polyester is particularly recommended for use in manufacturing conditions in excess of 100°C. It is suitable up to a maximum working temperature of 150°C in the chemical pH range 1-7.
1. High tension and smooth surface
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear and easy cleaning
7. We can do as customer's requests and sample.
Application of Polyester Printing Mesh
1. Description

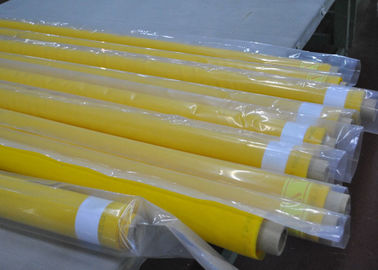

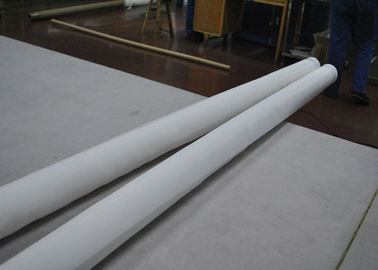

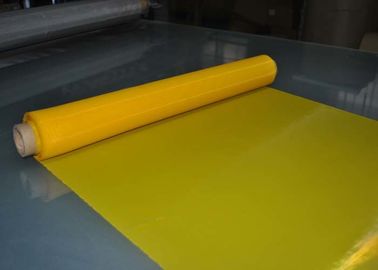

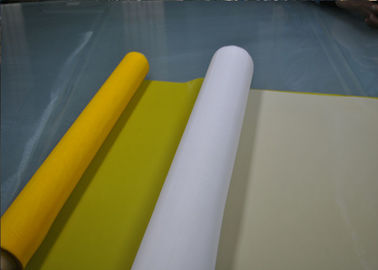

White mesh is the more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.
2. Application
Silk screen performance is good, high strength, eye hole accurate. Structural strength, good resistance to printing, high mesh accuracy, high dimensional accuracy, good dimensional stability, good resistance to drug performance, good ink performance; pull the net after the stability of the stability, printing accuracy and stability of the structure, can withstand Higher tension, low elongation; long life, in a very small net distance, and ink stripping performance is good; for a variety of large signs, billboards. Printing, printing and dyeing, ceramics, electronic components, glass, industrial filtration, food chemical paper, plastic, silk chemical fiber ...... and other industries
Features of polyester printing mesh
1. Description of 120T polyester printing mesh
Item model:120T-31 and 120T-34
Mesh:300mesh/inch
Thread diameter:31micron or 34 micron
Width:1.15-3.6m
Length:50meter is standard length

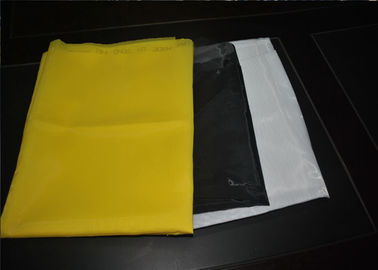

Color:white,yellow
We can also do the size what you want
2. The characteristics of 300mesh polyester printing mesh
Application of 120T polyester printing mesh
The factory by virtue of high-quality domestic and imported raw materials, advanced weaving and testing equipment, perennial supply of first-class polyester and nylon mesh products.
Polyester printing network is widely used in printed electronic PCB circuit board, printing plate printing textile, glass, ceramics, printing advertising, banners, magazines, printed electronic displayetc.
